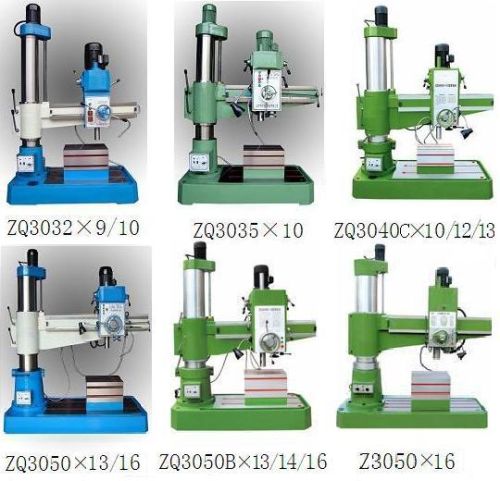

Radial Drilling Machine, Automatic Grade : Semi Automatic

We are offering radial drilling machine.
Specifications zq3032*9 zq3032*10 zq3035*10 zq3040c*10 zq3040c*12 zq3040c*13 zq3050*13 zq3050* 16 zq3050b*13 zq3050b*14 zq3050b*16 z3050*16
max. Drilling dia.(steelcast iron) mm 2532 2532 3235 3540 3540 4050 4050 4050 4050 4050 4550 4550
spindle taper mt.4 mt.5
motor power kw 2.20.55 2.20.55 2.20.75 30.75 30.75 31.1 41.1 41.1 41.1 41.1 41.1 4
spindle speedsteps r.p.m 6 6 75-12206 38-9006 38-9006 38-9006 80-11226 80-11226 35-130012 35-130012 35-130012 25-2000
spindle feed steps mmr 0.13-1.306 0.13-1.306 0.10-1.006 0.10-1.006 0.10-1.006 0.04-3.20 16
spindle travel mm 120 120 190 270 270 270 250 250 315 315 315 315
dis. From spindle center to column surface mm 260-775 260-875 250-850 350-830 350-1030 350-1130 330-1110 330-1410 350-1100 350-1220 350-1420 350-1370
horizontal travel of spindle box mm 515 615 600 480 680 780 780 1080 750 870 1070 1020
table size mm 425*310*305 425*310*305 415*305*305 495*305* 305 495*305* 305 495*305* 305 575*405*405 575*405* 405 575*405* 405 575*405* 405 575*405* 405 600*500* 500
column diameter mm 180 180 200 230 230 280 280 280 280 280 280 350
dis. From spindle nose to base surface mm 220-1100 220-1100 260-1000 130-1100 130-1100 130-1050 260-1000 285-1250 100-1100 100-1100 200-1180 320-1220
overall dimensions l*w*h mm 1400*710*1880 1500*720*1880 1530*700*2100 1600*705*2350 1900*720*2350 1900*830*2450 2000*800*2350 2120*870*2420 2000*800*2400 2000*800*2400 2300*900*2500 2500*1070*2840
n.w. kg 800 850 1100 1650 1800 2200 2400 3100 2500 2800 3200 3500
g.w. kg 900 950 1200 1750 2050 2450 2600 3300 2700 3000 3400 3800
packing size mm 1400*740*2200 1500*750*2200 1600*750*2200 1670*750*2250 1950*950*2270 1950*950*2270 1950*950*2270 2700*1050*2270 1950*950*2270 2450*1050*2270 2700*1050*2270 2750*1150*2550
features automatic lift automatic feed and lift automatic feed and lift, double columns hydraulic
