Extra Accessories
Â

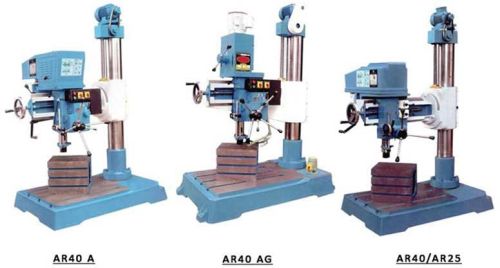

   •  AR25/AR40: Belt Driben & Fine Feed
  •  AR40A : Belt Driben & Auto Feed
  •  AR40AG : All Geared & Auto Feed
Â
 Salient Features
Â
   •  Closed Grain Cast iron Coloumn, arm, work head & gears.
  •  Parts Finished on imported grinding machine all moving parts Finished to close tolerance.
  •  Parts Properly balanced prior assemly.
  •  Main Spindle & pinion mode on DM forged steel.
  •  Alloy steel spindle rom.
Â
 Standard Accessories
Â
  •  Motor pulley in all machines.
  •  Complete Electrical Suitable for 415 Volts 50Hz 3 phase AC Supply (Electrical Panel Board & Switched) in Model R40BA & P40AA
Â
  Extra Accessories
Â
   •  Electrical Motors
  •  Drill Chuck & Arbor
  •  Tapping Control panel board
  •  Vee Belts
  •  Work table
  •  Coolant pump with coolant tank
  •  Keyless drill chuck & arbor
  •  Extra long Column
| DESCRIPTION | AR40AG | AR40A | AR40 | AR25 | |
| Drilling CapacityDrilling Capacity | 40 | 40 | 40 | 40 | |
| Spindle taper | MT-4 | MT-4 | MT-4 | MT-3 | |
| Spindle travel | 250 | 250 | 250 | 175 | |
| Spindle speeds (rpm x step) | 70-1225x9 | 88-2600x8 | 88-2600x8 | 105-2650x8 | |
| Spindle autofeed ranges (mm/rev.) | 0.05&0.09 | 0.05&0.09 | Flne feed | Flne feed | |
| Max/min dist.spindle nose to base | 950/250 | 850/250 | 850/250 | 860 / 100 | |
| Diameter of colum | 180 | 170 | 170 | 130 | |
| Work table | 300x300x385 | 300x300x385 | 300x300x385 | 265x200x200 | |
| Drill-head / elevating motor | 1.5hp/1hp | 1.5hp/0.5hp | 1.5hp/0.5hp | 1.5hp/0.5hp | |
| Built-in coolant tank | Yes | Yes | Yes | No |
