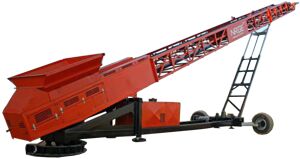

For Wide Range of Stockpile Applications

• Stockpiling of large quantity of material under conveyor, like GSB grade material in crushing plants for road projects
• Stockpiling of aggregates & M-sand in conventional crushing plants and crushed ores, coal etc.
• Simultaneously loading of product bins & ground stockpiling

FEATURES & BENEFITS

• Achieves Conical Stockpile capacity up to 1200 tonnes
• Radial stockpiles of 8,000 tonnes (approx) through a 120 degree radius & 10,000 tonnes (approx) through a 180 degree radius
• Hydraulically operated telescopic frame will facilitate adjustment of conveyor discharge height
• Minimizes segregation of material with hydraulic adjustable discharge height from 3.29m to 9.13m
• Discharge height adjustment feature will minimize airborne dust particles and minimizes environmental issues
• Powered Radial drive will minimize stoppage of the plant operation for want of wheel loader to clear off material under head drum of conveyor
• Hydraulically operated axle extension mechanism will enable the conveyor to switch quickly from transport mode to the radial movement mode
• Limit switch controlled operation of the radial drive does not require any extra manpower to monitor the operation of the equipment
• Arc of the Radial movement operation can be changed by shifting the positioning the limit switches in between 90-120 & 180 degrees
• Compact Electrical-Hydraulic drive arrangement with 15kW motor will ensure smooth running of conveyor drive & radial drive
• Optional 5^th Wheel arrangement for road transport
• Optional diesel engine drive
