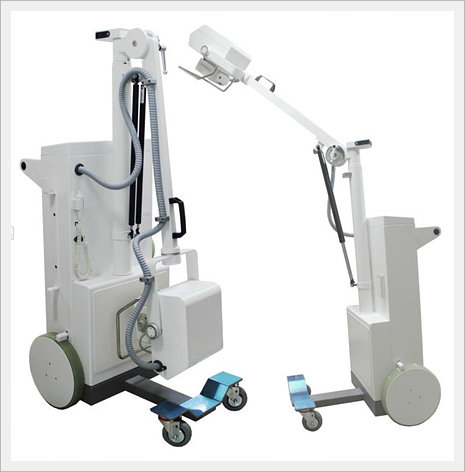

Radiology Department Mobile X-ray Unit

Mobile X-ray System
• Excellent image quality
• Compact design
• Easy maneuverability
• Economical solution
• Flexible application
• Short exposure time
• Wireless & wire remote exposure

Parts Technical Specifications
X-ray Generator : High Frequency Inverter Control System
Output : Adjustable Tube Voltage : 40kV~110kV ( 1kV step )
mAs Range : 1.0mAs~200mAs
Max output power : 5.2kW at 60kV 86mA at Input 220V

X-rayTube : Focal Spot : 1.8mm
Max. Tube Voltage/Current : More Than 110kV / 100mA
Anode Type : Stationary Anode
Anode Heat Storage Capacity : More Than 30 kJ
Target Angle : 15°
Collimator : Ramp Illumination : More Than 160 lux (24V / 150W)
SID SCALE : 2m
AC input Voltage : AC 115/120 & 220/230V
Phase & Frequency : Single-phase 50/60Hz
Weight : Net weight : 150kg
