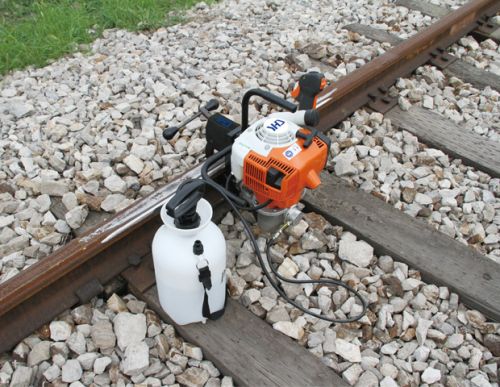

yhd-d31a ultra-light rail drilling machine
name: yhd-d31a ultra-light rail drilling machine
id: c024
compact design ensures that the machine is light and robust.
product features
short drilling time with powerful engine.
simple clamping device to ensure accurate and quick fixing within a few seconds.
lightweight, firm structure and optimum comfort.
automatic lubricant feeding during drilling work.
max. Drill bit diameter up to 38mm.
technical specifications
items unit specifications
1 engine stihl fs120
2 power kw 1.3
3 no-load speed rpm 9000
4 drilling accuracy mm 0.2
5 spindle speed rpm 180
6 drilling stroke mm 50
7 dimensions mm 650*450*450
8 weight kg 20
