Rail grinding machine
1.1

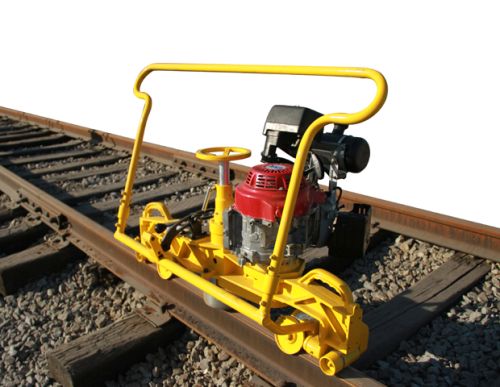

yhd-g1 rail profile grinding machine
name:yhd-g1 rail profile grinding machine
id:c001
this machine is designed to grind the rail head and remove the weld beads at welding joints, ensures perfect grinding of rail head.
product features
precise setting of grinding angle through an outrigger.
the grinding of rail top and sides can be completed in one continuous grinding operation.
equipped with two support rollers and two guide wheels to ensure a smooth operation on the rail.
ergonomic design allows grinding work easy and fast.
technical specifications
items unit specifications
1 engine honda gx270
2 powerspeed kwrpm 5.13600
3 fuel consumption rate gkw h ≤374
4 grindstone size mm φ=150, δ=72
6 adjustable grinding angle -90~+90
7 dimension mm 1120*760 *800
8 weight kg 79
