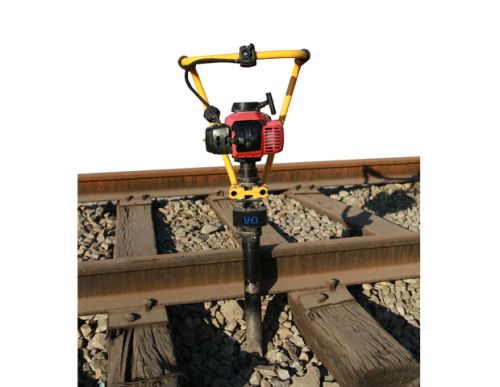

yhd-d40 light tamper
name: yhd-d40 light tamper
id: c050
light tamper applicable to railway maintenance of ballast track bed. The tamper is easy and fast to insert and pull out from the ballast, especially applicable to turnout tamping operation.
product features
light in weight (17kg) and long servicing life with low maintenance.
perfectly protect the ballast compared to other conventional tamper.
ergonomic design enable low vibration and comfortable operation of operator.
anti-loose connecting device facilitates the maintenance on site without special tools.
technical specifications
items unit specifications
1 engine komatsu type g4l
2 power kw 1.5
3 rated vibration acceleration ms² 1400
4 maximum non-loaded amplitude mm >5
5 vibration frequency hz 130
6 weight kg 17
7 dimensions
mm 1060 x 400 x 280
the product has obtained 1 national invention patent and 3 utility model national patents. The product has passed the technical identification of the shanghai railway administration and the crcc certification.
