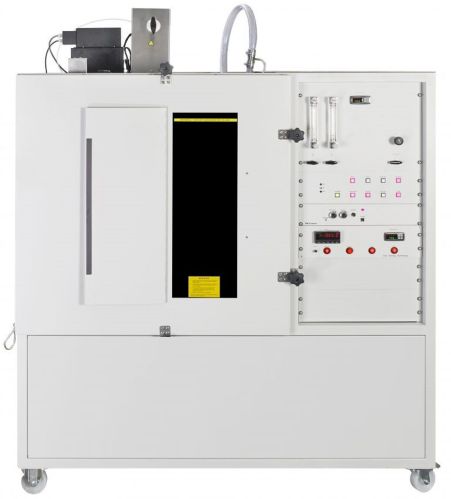

Railway Smoke Density & Visibility Testing Equipment – EN 45545-2 | KDM Global

Overview:

KDM Global is a trusted manufacturer and exporter of Railway Smoke Density & Visibility Testing Equipment designed to comply with EN 45545-2 and ISO 5659-2 standards. These high-precision systems are engineered to assess the smoke generation and visibility reduction characteristics of materials used in railway interiors during fire incidents.

Our equipment helps metro rail authorities, coach builders, OEMs, and accredited labs to test and certify materials for safe use in railway environments by simulating real fire conditions and measuring how smoke impacts visibility and evacuation.

What Is Smoke Density & Visibility Testing?

Smoke density testing evaluates the specific optical density (Ds) of smoke produced when a material burns under controlled conditions. Reduced visibility due to smoke is a major hazard in trains and metros during fire accidents. EN 45545-2 mandates that materials used in railway interiors must not generate excessive smoke that impairs visibility and evacuation.

Testing smoke density ensures that materials meet Hazard Levels HL1, HL2, HL3, depending on their location and application in a railway coach.

Standards Supported:

• EN 45545-2 Requirement for Smoke Opacity

• ISO 5659-2: Plastics — Smoke Generation in a Closed Chamber

• ASTM E662 (Optional calibration standard)

• ISO 5658 & ISO 9239-1 (For extended compliance)

KDM Global Smoke Density Tester – Key Features:

✅ Conforms to ISO 5659-2 & EN 45545-2
✅ Advanced photometric system for visibility assessment
✅ Measurement of Dsmax and VOF4 (visibility over time)
✅ Modular design with high thermal resistance
✅ Optional FTIR integration for toxic gas detection
✅ Real-time data recording & automated analysis software

Technical Specifications:

• Chamber Size: 1 m³ standard sealed chamber

• Light Path: Horizontal photometric system (0.5 m – 1 m)

• Ignition Source: Electrically heated radiant panel or flaming ignition

• Measurable Parameters:

  • Specific Optical Density (Ds, Dsmax)

  • Transmittance (%)

  • VOF4 (Visibility loss over 4 mins)

• Sensors: Smoke photodiodes, thermocouples, gas sampling ports

• Data Output: Digital graphing + tabular reports in PDF/CSV

Applications:

• Testing seat cushions, composite panels, plastic trims

• Fire evaluation of flooring, insulation, and coatings

• Metro interior material testing for visibility compliance

• Safety certification for electrical cable covers and ducts

Why KDM Global?

🔧 Manufactured in India, Exported Worldwide
📊 Precise digital software with real-time analysis
🧪 ISO 5659-2 compliant combustion and smoke path
📞 Installation guidance + online support available
🎯 Tailor-made options for labs and OEMs

Compatible Add-ons:

• FTIR Toxic Gas Analyzer for integrated EN 45545-2 gas testing

• Data Logging Software with cloud export

• Calibration Kit for periodic system checks

• Spare Quartz Windows, Lamps, and Airflow Sensors

Industries Served:

• Indian Railways (RDSO, ICF, RCF, CLW)

• Metro Corporations (Delhi, Mumbai, Chennai, Hyderabad)

• OEMs and Private Lab Facilities

• International Clients in UAE, Germany, KSA, Egypt, Turkey

• Railway Research Labs & Fire Testing Institutes

Export Package Includes:

📦 Wooden Crate Packing for global transit
📄 Documents: CE Certificate, Calibration Report, COO, FAT Video
🔧 Support: Remote Installation & Setup Manuals
🚚 Delivery: Air/Sea Freight, DDP Available
