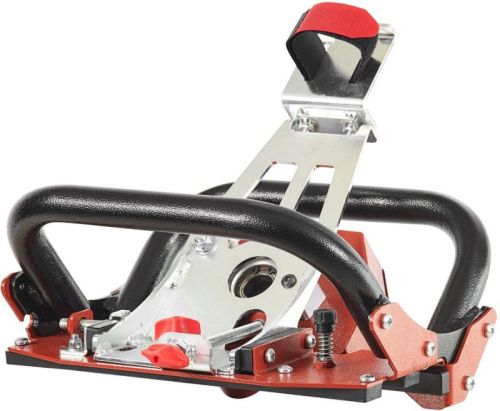

Raimondi - Angle Cutting Device To Perform 45 Degree.

Device to perform 45° miter cut high quality finishing (“jolly”) directly on construction site (actual

miter angle: 47°).

• It works leaning and sliding on the edge of the tile (or slab): this guarantees a fast and precise

work execution and allows to work without any limit on length.

• The anti-scratch plastic slides ensure optimal smoothness on the slab/tile.

• Maximum slab/tile thickness: 16 mm (0.63”) with Ø115 mm (4 1/2”) blade; 20 mm (0.79”)

with Ø125 mm (5”) blade.

• The two handles are designed to easily allow the necessary pressure during the entire length of the

miter cut (entrance, slab side, exit) to guarantee both optimal results and maximum ergonomics.

• Cutting depth adjustment: by adjusting the dedicated knobs, it is possible to determine the amount

of material to be removed (farther or closer to tile glaze). Once the adjustment is set, it stays for

any tiles/slabs thicknesses.

• Blade tilt adjustment: by acting onto dedicated screw, blade can be tilted to prevent its rear chipping

the edge of tiles/slabs.

• Suitable with almost all angle grinders with power between 600-1100W
