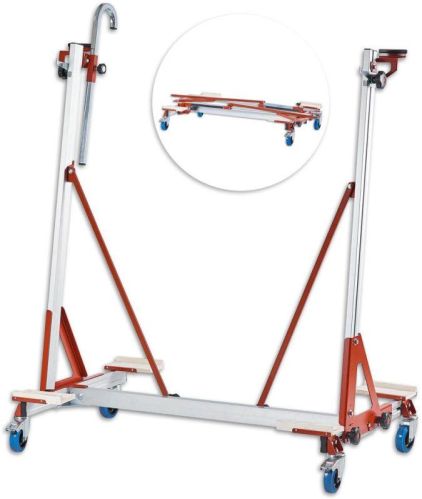

Raimondi - Cart For Large Format Tiles ( Imported By MM 2 MM )

The Raimondi Cart is a versatile cart specifically designed for handling and transporting large-format tiles

1. Dimensions and Capacity:

   - Designed for tiles up to 3200 x 1600 mm (approximately 10.5 x 5.2 feet).

   - Maximum load capacity: 250 kg (551 lbs).

2.  Weight and Portability:

   - The cart itself is lightweight, weighing 20.4 kg (44.9 lbs).

   - It can be quickly disassembled for easy transportation and storage.

It allows to easily and safely spread adhesive in the back of the tile (“back-buttering”). For this

purpose, it comes with two height-adjustable hooks for holding the handling devices (i.e.: EASYMOVE)  with the slab fastened on them.

• When the handling devices/frames are on the, the suction cups remain fully accessible. If needed, this allows to easily restore the vacuum level. This feature is particularly relevant when installing textured large-format tiles. One side of the cart can be used as storage for the transport of one or more slabs.

• Wooden shelves on both sides of the cart provide safe support for large format tiles.

• On the storage side there are 2 height-adjustable rubber supports and plastic protections to prevent

any accidental damage to the slabs.

• Height-adjustable safety hooks (which can be adapted to the dimension of the slab) to prevent

slabs to fall.

• Two of the four pivoting wheels are provided with brakes to prevent the cart to accidentally

move.
