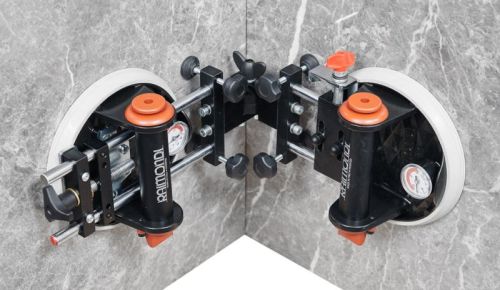

Raimondi - Tile Setter Device For Counter Tops & Furnitures

To align, level and move sideways kitchen / bathroom countertops (or other furnishing elements)

during the installation phase.

• Suitable for both flat and corner installations.

• Equipped with two leveling units

• The vertical leveling is achieved via 4 height adjustable feet with knobs which are meant to be

positioned on the 2 countertop sections (slabs): the perfect flatness of the 2 countertop sections

(slabs) is achieved thanks to the vertical adjustment of the 4 feet.

• The horizontal alignment of the 2 countertop sections is achieved via a knob which controls with

high accuracy the clearance between the 2 suction cups.

• By acting onto knob, the 2 countertop sections(slabs) can be moved to achieve a perfect alignment

of the outer edges of the countertop .

• All adjustments can be achieved either on slabs laid horizontally or with an angle (to be equal, larger

or smaller than 90 ° - action range 192 °)

• Equipped with 2 vacuum suction cups RV175 (Ø 175 mm - 6 7/8”) with stain-free rubber pad,

ideal for tiles either with textured or smooth surface finish.

• Suction cups equipped with vacuum gauge.

• Thanks to the vacuum device, the grip can be restored without removing the suction cup from the

slab to grant a consistent support during the maturation of the bonding agent.
