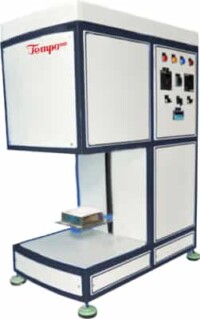

Electric Raising Hearth Furnace For Laboratory

Features

• Maximum operating temperature range up to 1800°C
• Dimensions from 1 up to 64 litres.
• Compact design for minimum space requirement.
• Rugged and durable Construction.
• Outer casing is made up thick mild steel with duly powder coated or thick buffed stainless steel, gives long service life with extremely resistant.
• Multilayer insulation with vacuum formed ceramic fibre or refractory bricks with low thermal mass.
• Reliable vibration free bottom lifting with electro-mechanical movement
• Prepared to carry heavy charge weight.
• Hot raising by hydraulic.
• Furnace design with powerful heating elements i.e. FeCrAl, SiC and MoSi2 installed in four walls of the chamber
• providing fast heating rate and excellent temperature uniformity.
• Fast heat up and cool down rates.
• Temperature uniformity +/- 5°C.
• Temperature control with PID controllers.
• Power control with solid state relays or Thyristor units
• for very precise temperature Control, wear-free and noiseless.
• High mechanical durability, short heating cycle and low power consumption.

Optional Features

• Over Temperature/Over Current Limiter.
• Touchscreen temperature controller.
• Port for additional thermocouple on top or rear wall of the furnace.
• Buzzer, Digital timer, Emergency shut down.
• Data Recorder.
• RS232/RS485/USB interface.
• Calibration of temperature measurement systems.
• Table/Stand for supporting the systems.
• Data Acquisition System (DAS) through software.
• UPS Systems.
• Customization as per user requirement.
• Caster wheels with brakes.
• Door safety switch.

Application

• Raising Hearth Furnace is designed for R&D labs, Educational institutions, Medicine and Industry, Thermal Process Technology, Dental Labs, Advanced Materials for following applications- Drying, Hardening, Annealing, Brazing, Sintering, Research, Heat treatment, Dental crowns and frameworks etc.
