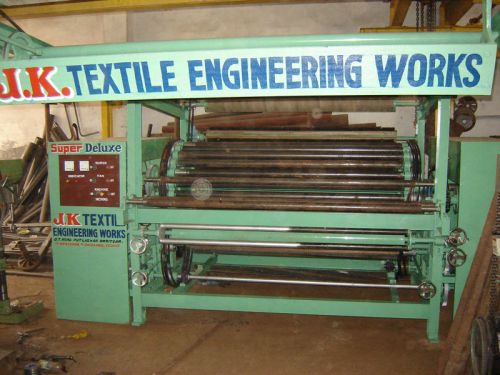

Raising Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

We offer Raising Machine with the best specification as desired. the fabrics raised through this are thick, soft and have a smooth feeling. the quality of these machines is according to international standards and this has placed us way ahead of our competitors.
features :
efficientcost-effectivesemi-automaticdurablealuminumhigh performance
main components :
framerollersdriveelectric motorexhaust systempanel based switch boardfillet
used in :
textile industryhosiery applicationswoolen industrylaundriescotton processing units
specialists inhydro extractorwooden washing & scouring machinecones' & topss. s. washing & scouring machinetop & bottom(italian type) rotary press machinebag lifting & discharge hydro extractorsingle & double folding machinehigh speed milling machinebale making machinestainless steel dyeing winchcombine washing scouring & milling machinestainless steel dyeing vatfelt calender machineheavy duty milling machinedyeing jigger machinefor endless woollen clothchemical hydro extractor machine and gears etc

Specification

Working Width:	80., 100", 105"
Raising Rollers:	24 - 36, dia. 21'67/16"
Raising Drum Revolution:	80 R. P. M.
Frames:	Cast Iron side frames and also fabricated from M. S. Channel as per order.
Filt :	Raising Cotton Backing 27/31 S 22 MM3 PLY. (Indian Card Clothing Co. Ltd.)
Delivery:	Plaiting down device.
Pulleys:	V-Belt Driven
System:	Counter & Pile Roller Dial Adjustment, Also Provided Exhaust fan Two Brush rollers
Sides:	Both sides of the machine covered.
Electricals:	Two Electric motors and Complete Electric Panel.
Floor Space Required:	20' x 24' x height 8' (for 80.) 22' x 26' x height 8' (for 105")
The Machine is Most Sophisticated, Economical & suitable for raising Cotton, Woollen & Hosiery and is Semi-Automatic and Ensure Quality, Precision and Economy.

Technical Details

Drive capacity	10 to 15 H.P
Power Consumption	440 V or 50 Hz
Working Width	64" 72" 80" 90" 100" 105" 110"
Operational Speed	10 to 40 meters per minute
Production Capacity	6000 to 8000 meters
