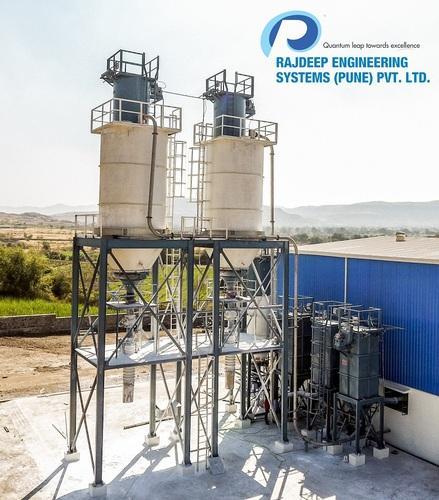

Rajdeep Automatic Pneumatic Conveying System, Voltage : 415V

Rajdeep’s specialized designs of Pneumatic Conveying systems for all dry material (Powder / Pallets).

Our pneumatic systems have high degree of flexibility, required low space & low maintenance & also weatherproof operation.

Rajdeep has large solid’s data bank & experience of number of installations and expertise in Pneumatic Conveying.

 Rajdeep’s proven Capabilities in Conveying System :

• Conveying Capacity up to 35 Ton Per Hour
• Conveying Length up to 300 Mtr
• Conveying solids BULK Density ranges from 150 – 2200 Kg/m3
• Conveying with Close Loop System by conveying media Inert Gas (Nitrogen)
• Solids conveyed like PTA powder, Polyester chips, LLDPE, ESP Dust, Talcum Powder, Grain Flour & many more.

A pneumatic conveying system is a process by which bulk material of almost any type are transferred or injected using a gas flow as the conveying medium from one or more sources to one or more destinations. Air is the most commonly used gas. For hygroscopic materials dry air can be used, and for potentially explosive materials an inert gas such as nitrogen can be employed.

Pneumatic conveying is more practical & economical method of transporting solid from one location to another than the mechanical conveying (Belt conveyor, Screw conveyor , vibrating conveying etc. ) because of following three reasons:-

• These are totally enclosed and if required can operate without moving parts coming in to contact with the conveyed material.
• Being enclosed very clean, environmentally acceptable & easy to maintain.
• Very economical to install & operate
• Very Flexible interms of routine & expansion
• Can convey any product at any place.

Types of Pneumatic Conveying

• Lean/ Dilute Phase System
• Dense Phase Conveying System
