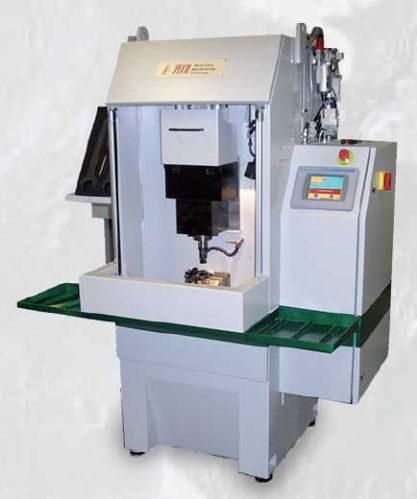

Semi Automatic Fillet Rolling Machine

Semi automatic fillet rolling machine (fr-s2) offered by us is renowned in the market for having a perfect blend of perfection and efficiency in its performance. Our semi automatic fillet rolling machine (fr-s2) does not demand much maintenance, thereby being very cost effective. custom-designed for

• custom-designed for
• precise, programmable parameters with 100% in-process checking
• fast changeover
• ease of maintenance
• safe, clean working
• impressing your customers
• capacity
  • rolling force : up to 1,000 kgf 2,200 lbf
  • cycle time : 3 -10 seconds
  • features
    • free-standing machine designed to be at a comfortable height for a seated operator
    • manual load and unload
    • automatic cycle initiated by operator via foot pedal
    • pneumatic pivot to move head from loading position to rolling position
    • pneumatic cylinder producing up to 1,000 kgf 2,200 lbf rolling force
    • load cell to measure actual rolling force during each cycle and to check that it is within programmed limits
    • programmable control of rolling force, rpm & time
    • drive unit with inverter controlled spindle motor
    • allen bradley or siemens plc control system with 6” touch-screen (hmi)
    • safety light curtain to protect operator during cycle
    • integrated coolant tank, filter and pump
    • lockable tool tray
    • .
