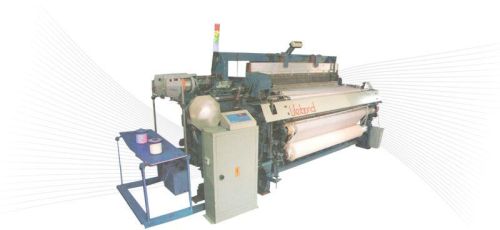

Rapier Tappet Shedding Loom

Get Latest Price

Weft Stop MotionElectronic 6 Hole Weft Slide Sensor.
TempleRing Type Cylinder with Pin.
Fabric Storage400mm Dia.
Shed FormationTappet, Cam Dobby, Jacquard.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Lifebond Machines Pvt. LTd.

Station Road, Surat, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

DrivingElectric Motor (Changed According to Width of Machine 0.9 kw - 2.33kw).
Fabric Storage400mm Dia.
Shed FormationTappet, Cam Dobby, Jacquard.
Weft Stop MotionElectronic 6 Hole Weft Slide Sensor.
TempleRing Type Cylinder with Pin.
Warp DetectionOptical /optional Dropper Pin Type with 6 rows.
Weft FeederBobbin Stand Through Weft Accumulators.
Selvage CutterThermal (mechanical Optional).
BeamFlanged Beam Upto 24'' Diameter.
LubricationCentralized Lubrication by Oil Pump.
SelvageMagnetic Leno With Bobbin Stand.
Take upAdjusted According to weft Density of the Cloth by Pick Wheels.

The LIFEBOND Rapier loom has been designed with a very solid structure which permits to weave without vibration at high speeds. The machine has a capacity to weave light as well as medium to heavy to fabrics. The machine is Powered by a 2 H.P. 3-phase electric motor combined with Electro Magnetic Brake.

TECHICAL SPECIFICATION
Working Width	1500~3200mm (60''~95'')
Weft Insertion	Upto 400 Mts/Min by left and Right Flexible Rapier Band &Head.
Cloth	Suitable for,for Fine, Medium & Heavy Fabrics From cotton,Polyester, Silk, Wool. Acrylic, Rayons, Nylon and Fancy Yarns.
Weft Selection	6 Colour Pick and Pick with Programmable Microprocessor Based weft Presenter/ Mechanically Possible by Dobby and Jacquard.
Shed Formation	Tappet, Cam Dobby, Jacquard.
Beam	Flanged Beam Upto 24'' Diameter.
Fabric Storage	400mm Dia.
Weft Stop Motion	Electronic 6 Hole Weft Slide Sensor.
Warp Detection	Optical /optional Dropper Pin Type with 6 rows.
Selvage	Magnetic Leno With Bobbin Stand.
Selvage Cutter	Thermal (mechanical Optional).
Temple	Ring Type Cylinder with Pin.
Take up	Adjusted According to weft Density of the Cloth by Pick Wheels.
Driving	Electric Motor (Changed According to Width of Machine 0.9 kw - 2.33kw).
Weft Feeder	Bobbin Stand Through Weft Accumulators.
Lubrication	Centralized Lubrication by Oil Pump.
