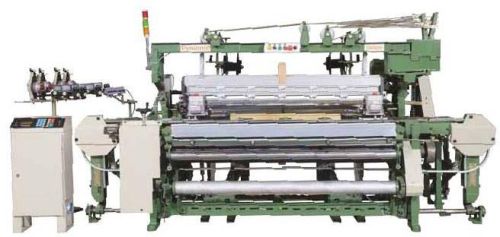

Dynamic Autolooms Rapier Weaving Machine

Get Latest Price

Sold By : Dynamic Autolooms India Pvt. Ltd.

Send Inquiry

Product Specifications

SHEDDING MOTIONCAM MOTION, DOBBY, JACQUARD
SPACE REQUIRED FOR 170CM M/C.12.9" X 6" (IN FT:- LENGTH & WIDTH)
WIDTH REDUCTIONUP TO 400 MM
WEFT COLORS2,4,6,8 OPERATED BY MICROPORCESSOR BASED CONTROLLER (OPTIONAL) OR MECHANICAL JACQUARD UP TO 8 COLORS (FOR JACQUARD LOOM)
WARP CONTROLELECTRICAL 6 ROW (OPTIONAL)
SPACE REQUIRED FOR 190CM M/C.13.5" X 6" (IN FT:- LENGTH & WIDTH)
LUBRICATIONSTANDARD / CENTRALIZED (OPTIONAL)
MACHINE TYPEFLEXIBLE RAPIER LOOM
INSTALLED POWER1.1 KW / 1.5 KW
WORKING WIDTH50 MM LESS THAN LOOM WIDTH
SPACE REQUIRED FOR 150CM M/C.12.1" X 6" (IN FT:- LENGTH & WIDTH)
WIDTH INSERTION RATE350 MTRS / MIN
WEFT CONTROLPIEZO ELECTRONIC
APPLICABLE YARNSNATURAL, SYNTHETIC, BLENDED & POLYESTER
LET-OFFSEMI POSITIVE (ATTACHED) / SEPARATE BEAM TYPE
SPACE REQUIRED FOR 140CM M/C.11.9" X 6" (IN FT:- LENGTH & WIDTH)
SPACE REQUIRED FOR 230CM M/C.14.10" X 6" (IN FT:- LENGTH & WIDTH)
AVAILABLE LOOM WIDTH140, 150, 170, 190, 230 (IN CM)
CLOTH ROLLUP TO 400MM DIA
TAKE-UPSEVEN WHEEL
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We are offering rapier weaving machine.
trendy rapier weaving machine

Additional Information

Port of DispatchNHAVA SHEVA
Delivery Time90 DAYS FROM THE DATE OF ADVANCE PAYMENT ALONG WITH ORDER DATE
