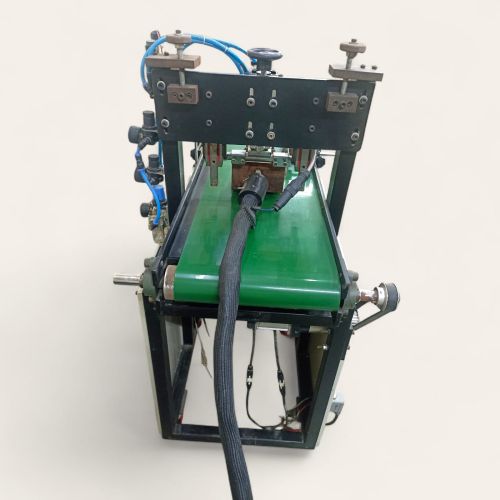

Electric Powder Coated Rat Glue Trap Making Mini Machine

This machine is designed for making Rat traps on boards with hot melt adhesive.

Board size Min. and Max.                       10” max. width and 4” min. width

Coating size                                           200mm (Max.) X 100mm (Min.)

Max. Machine Speed                              3 Pcs/min @ 18 gms per pad

Main Motor                                             1.0 KW

Max Gluing Width                                   200 mm

Glue Tank Capacity                                5 kg/hr

Machine Size                                         1000x650x1200mm

Power Requirement 3 Kw, 415 V, 50 HZ, 3 Phase

a)      Glue melt tank

1.      The shell is made of steel, square steel and 1.2mm steel plate.

2.      Use aluminum alloy to build. Two-layer (upper and lower) structure.

3.      Adopt high-temperature-resistant high-precision gear glue pump

4.      Adopt external precise filter.

5.      The glue pump speed is controlled by gear motor

6.      Temperature of each layer is controlled by PID system independently

7.      Max. temperature is 200℃

8.      Melt glue speed: 5 kg/hr (EVA.3000 centipoise 165℃)

9.      Heating power: app. 3 KW

b)     Hot Hose

1.      2 m length hot melt hose provided.

2.      230V AC, 600 w power.

c)      Slot die

1.      Coating head: Slot die temperature-resistant alloy steel. SKD210

2.      Mounted on Pneumatic piston for up – down moment

3.      Coating width adjustment with shims insert

4.      Levelling in transfers direction to conveyor is provided.

d)     Transmission part

1.      Main motor:                                1 HP                       1 set

2.      Glue pump motor:                      0.5 HP                    1 set

3.      Main machine driven by use of belt, chain and gear to transmit.

e)      Pneumatic control part

1.      Cylinder on slot die, feeding and stopping with head: ￠50mm for each

2.      Suitable solenoid valves, flow control and connectors.

f)       Electric part

1.      Main machine VFD:                    1 HP;            1 piece

2.      Glue tank VFD:                          1 HP;            1 piece

3.      Temperature controller:    digital PID

4.      Heaters:                           6KW

5.      Touch screen:                  3”                 1set

6.      PLC:                                                     1 set
