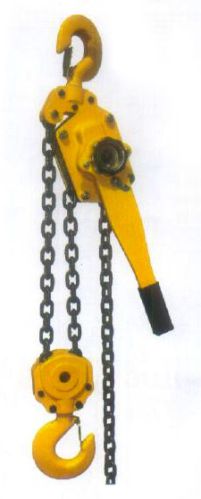

Ratchet Lever Hoist

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are enlisted amidst the reliable Ratchet Lever Hoist Manufacturers & Importers in India. The Ratchet Lever Hoists, offered by us, have earned us loads of appreciation in the national as well as....

View More Details

Send Enquiry

Company Information

Overseas Commercial Corporation

Kondhwa, Pune, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer
Year of Establishment 1956

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are enlisted amidst the reliable Ratchet Lever Hoist Manufacturers & Importers in India. The Ratchet Lever Hoists, offered by us, have earned us loads of appreciation in the national as well as international market due to the unmatched quality and unsurpassable performance. Our Ratchet Lever Hoists are manufactured as per IS â�� 11340 specifications.
Features

Light weight, compact design, easy to operate
High efficiency
Warranted for 12 months
High impact gear case and brake cover made from Special Alloy Steel
Fully enclosed brake system
Each hoist is tested to 150% of the rated capacity
Superior rubber grip
Metal Asbestos for sustaining the load and preventing self-lowering

Construction

Housing : The housing of the hoist is made from high graded Cast Iron, designed for maximum strength and maintains alignment under all conditions of service.
Gears & Load sprocket : Manufactured from Special Alloy Steel & Heat Treated. Designed for greater strength and surface durability
Chain : Roller Chain conforming to IS::2403.
Operating Lever (with PVC grip) : Made from Steel conforming to IS: 2062 Grade A.
Lubrication : Grease Nipples are provided for lubrication of inner parts, for smooth and trouble free operation
Hooks : Forged Steel, conforming to IS: 8610 Grade P. Hooks are provided with safety catches. Zinc Plated as per IS : 1573

Specifications

Model		HY..0.75	HY- 1.0	HY- 1.5	HY- 2.0	HY- 3.0	HY- 6.0
Capacity (t)		0.75	1.0	1.5	2.0	3.0	6.0
Standard lifting height (M)		1.5	1.5	1.5	1.5	1.5	1.5
Test Load (t)		1	1.25	1.875	2.5	3.75	7.5
Effort required to Lift max load (N)		140	140	210	220	330	340
Diameter * Pitch Load chain (mm)		6*18	6*18	8*24	8*24	10*30	10*30
Net weight (kg)		7	7.5	11	11	18.5	29
Dimensions (mm)	A	148	148	171	171	190	190
	B	87	87	98	98	105	105
	C	140	140	165	165	220	250
	D	35	35	40	40	50	60
	H	310	310	420	420	550	680
	L	250	250	405	405	405	405
Packing Dimension		33 x 13 x 17	33 x 13 x 17	41x14x19	51x14x19	52 x 19 x 20	52 x 19 x 20
Weight (Kgs) for additional mtr. lift		0.8	0.8	1.4	1.4	2.2	4.4

Technical Specifications

Model	RLH8 RDSO APPROVED	RLH16 RDSO APPROVED	RLH32 RDSO APPROVED
Capacity	0.8 tonne	1.6 tonne	3.2 tonne
A	162 mm	200 mm	220 mm
B	170 mm	185 mm	185 mm
C	31.5 mm	38.0 mm	42.5 mm
H	380 mm	450 mm	530 mm
L	500 mm	500 mm	500 mm
Standard Lift	1.37 m	1.37 m	1.37 m
Effort	15.0 kgf Max	40.0 kgf Max	50.0 Kgf.Max
No. Of Falls	1	1	2
Working load limit	0.8 t Max	1.6 t Max	3.2 t Max
Factor of Safety	4 min	4 min	4 min
Roller Chain	ISO 12B-1 19.05mm(3/4")	ISO 16B-1 25.4mm(1 ")	ISO 16B-1 25.4mm(1 ")
Radius of Operating Lever	0.5m Max	0.5m Max	0.5m Max
Weight	13.0 kgs Max	20.0 kgs Max	28.0 kgs Max
