Ratio Mixture Feeding System, Brand Name : Partek

We are offering ratio mixture feeding system.
Introduction

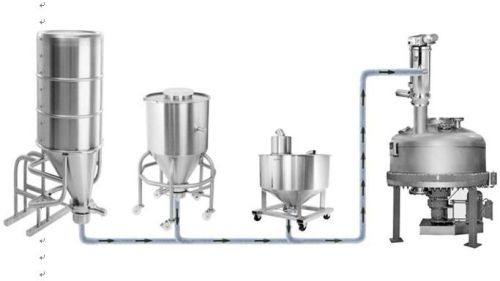

metering ratio mixture transportation of multiple materials is available by this system. The whole metering ratio mixing process can be operated by the computer controlling centre. The whole producing process is visible so that the man-made errors can be precluded effectively. The system is of high automation, simple operation, absolute cleanness, environmental protection, feeding accuracy and high ratio mixture precision. Therefore, it is widely used in foodstuff, chemical industry, pharmaceuticals, etc.
Features:
1. each material storage pot has separate material feeder and rationing device。
2. the ingredient accuracy can be done by such rationing equipment as double butterfly valve, combination valve, translational valve, screw, pressure sensor, etc.
3. mixture ratio transportation of multiple materials is available.
4. measuring precision is around 0.2% (according to the material features), which guarantees the accuracy of material feeding.
5. distance of material feeding: horizontal: 80 meters at the top; vertical: 30 meters at the top.
6. the producing process can be wholly controlled and monitored.
7. the data of ingredient calculation can be preserved by automatic backup in case that the date gets lost.
8. the cost of raw material storage is decreased and the production efficiency is promoted.
9. practical output of production line can be objectively evaluated, which provides accessible data for production plan.
10. be economic, practical, simple and feasible.
