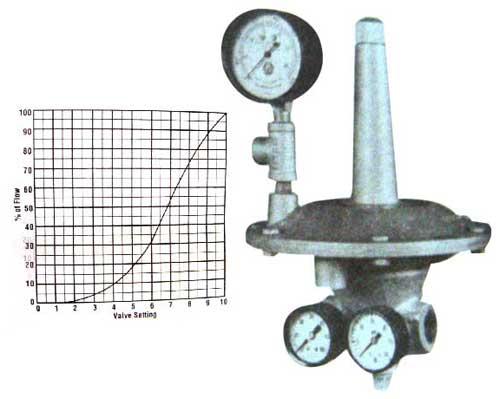

Ratiotrol Oil Valve

We are one of the leading manufacturers and suppliers of quality oil valves that are suitable for precise oil flow control to maintain oil flow more accurately and in proportion to combustion air. Our oil valve is fabricated of cast aluminum body and rubber diaphragm of nitrayl or viton rubber to withstand oil temperature up to 120 deg c. Our oil valves are operated with the help impulse air signal from combustion main air supply. Increase in the impulse air pressure will increase oil flow proportionately. Our oil valves are provided with female thread for inlet and outlet oil pressure gauge and impulse air pressure gauge.
Attributes :
Strong builtCorrosion resistantEfficientAbrasion resistantControls oil flowAccurate and in proportionFemale thread with inletoutletImpulse air pressure
Raw Materials Used :
Cast aluminum body andRubber diaphragm of nitraylViton rubber
Availability :
Model : VIR-1, VIR-2Air Impulse : 200 MM, 1000 MMOil flowRate LPH : 30, 360
Applications :
For Oil Fired Furnaces
