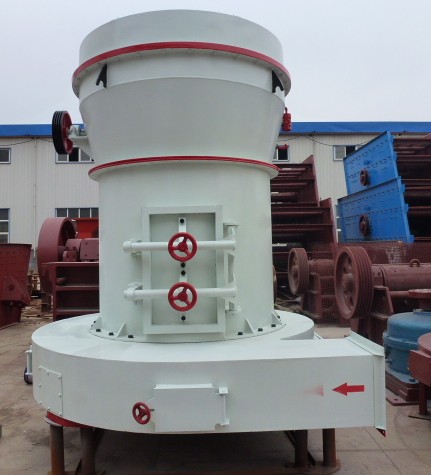

Raymond Mill

A-suitable raw material:
our raymond mill is designed for grinding non-inflammable and non-explosive materials with mohs hardness below 7 and moisture content below 6% such as barite, calcite, feldspar, talcum,marble, limestone, ceramic, glass, etc for ultra-fine powder processing of 280 materials.
B-final product:
1-size: can be adjusted between 80-325 mesh
c-machine features:
1-low running costs.
2-fully automatic control, not manual
3-compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach;
4-combine the medium crushing, drying, grinding, classifying and other functions as a whole, being the ideal equipment in the grinding industry.
D- technical data
model roller qty ring size (mm) finished
(mm) capacity(th) power (kw) size (mm)
3r1510 3 570×100 0.198-0.044 0.3-1.2 7.5 3200×2100×3800
3r2115 3 630×150 0.198-0.044 0.4-1.6 15 4100×3300×4500
3r2615 3 780×150 0.198-0.044 0.8-2.5 18.5 4300×3500×5100
3r2715 3 830×150 0.198-0.044 0.9-3 22 4500×4100×5200
4r3016 4 890×160 0.198-0.044 1.5-4 30 6500×4100×5200
4r3216 4 970×160 0.198-0.044 1.8-6 37 7900×5800×9100
5r4119 5 1280×190 0.198-0.044 3-10 75 9200×8000×9700
