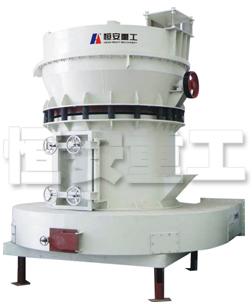

Raymond Mill

Features:
1.Raymond mill is of a vertical structure. Small occupying space and strong integration on capacity. Can form an independent production system from the lump materials, crushing to finished power and packaging.
2.Finished particles have a good uniformity of fineness, with passing screen rate as high as 99%. This is what other machine cannot reach.
3. Gearing adopts sealed gear box and pulley, smooth transmission, reliable operation.
4.Key parts are made of high quality steel, wear-resistant parts made of high-performance wear-resistant materials, high wear-resistant property and reliable operation.
5. Electrical system with centralized control, can achieve unmanned operation in milling workshop, and easy to maintain.
Technical Parameter:
Model
Data
3R1410
3R2115
3R2615
3R2714
4R2714
3R3016
4R3016
4R3216
5R4119
6R4525
Max Feed-in Size(mm)
5-8
15
20
20
15-25
15-25
15-25
25
30
30
Fineness Of Product(mm)
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
0.125-0.044
Capacity/Shift(t/8h)
(Range Diff Materials)
1-10
1-18
2-25
2-28
3-30
3-34
3-36
3-38
6-76
10-120
Speed
(r/m)
280
180
170
170
170
178
178
130
105
82
Inner ring Diameter (mm)
Φ405
Φ640
Φ780
Φ830
Φ830
Φ910
Φ910
Φ970
Φ1280
Φ1770
Roller Diameter(mm)
Φ140
Φ210
Φ260
Φ270
Φ270
Φ300
Φ300
Φ320
Φ410
Φ450
Height (mm)
100
150
150
140
140
160
160
160
190
250
Main Motor Power(kw)
Y160M-6-7.5
Y200L-8-15
Y225S-8-18.5
Y255M-8-18.5
Y225M-8-22
Y225M-8-30
Y225M-8-30
Y225S-4-37
Y280S-4-75
Y315M-4-132
Fan Motor Model(kw)
Y132S-4-5.5
Y132M-4-11
Y180M-4-15
Y180M-4-18.5
Y180M-4-18.5
Y180L-4-22
Y180L-4-22
Y220M-4-30
Y25M-4-55
Y315M-4-132
Classifier Motor(kw)
Y90L-6-2.2
Y112M-6-2.2
Y112M-6-2.2
Y112M-6-2.2
Y112M-6-2.2
Y132S-6-3
Y132S-6-3
YC1200-4A-5.5
YC1200-4B-7.5
Y160M-4-11
Dimensions(mm)
3340×2161×3246
4500×2800×5000
5970×4000×5000
5970×4000×5000
5970×4000×5000
7500×4500×6200
7500×4500×6200
9900×5800×8500
7850×8000×9700
8850×10500×1100
Weight(kg)
2500
3100
3800
3850
3900
7000
7500
14000
257000
470000
