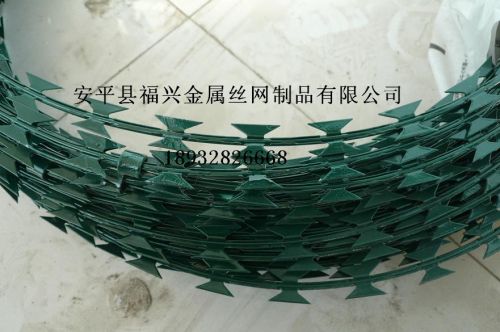

Razor Barbed Wire

Barbed Wire Specification:
Type Wire Gauge (SWG) Barb Distance (cm) Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
PVC coated barbed wire; PE barbed wire before coating after coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
Razor Blade Specification:
Reference Number
Thickness
Wire Dia
Barb
Length
Barb
Width
Barb
spacing
BTO-12
0.5±0.05
2.5±0.1
10±1
13±1
26±1
BTO-18
0.5±0.05
2.5±0.1
15±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
34±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±2
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification:
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
8M
CBT-65
Single coil
500mm
41
10M
CBT-65
Single coil
700mm
41
10M
CBT-65
Single coil
960mm
53
13M
CBT-65
Single coil
500mm
102
16M
BTO-10.15.22
Cross type
600mm
86
14M
BTO-10.15.22
Cross type
700mm
72
12M
BTO-10.15.22
Cross type
800mm
64
10M
BTO-10.15.22
Cross type
960mm
52
9M
BTO-10.15.22
Cross type
Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
