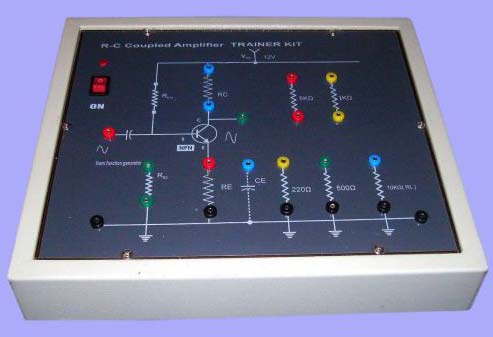

RC Coupled Amplifier Trainer Kit

We are experts when it comes to making RC Coupled Amplifier Trainer Kit. This kit is used for the study of frequency response and calculating the gain of the amplifier. The specially designed trainer kit we deal in is reckoned for accurate results and superb performance. We can design this product of ours in accordance with the industry stated norms and quality standards.

Details : RC coupled amplifier trainer kit helps to study frequency response and calculate the gain of amplifier. The kit perfectly fabricated with the highest grade components, The Panel known for its high performance and accurate results.

Features :

• Different test points provided on panel.
• Built in IC based circuits.
• Set of patch cords and connecting wires for bread board.
• Details description of operation theory and proper guidance.
• Experiment - To study construction and working of RC coupled amplifier and calculate the gain.

Specifications :

• In built power supply.
• Power on switch with led indicator.
• Set of resistors,
• Set of capacitors coupling.
• NPN transistors in CE configuration with terminals on front panel.
• Metallic powder coated cabinet.

Accessories :

• Complete operating manual with details description.
• Patch cords and connecting wires
