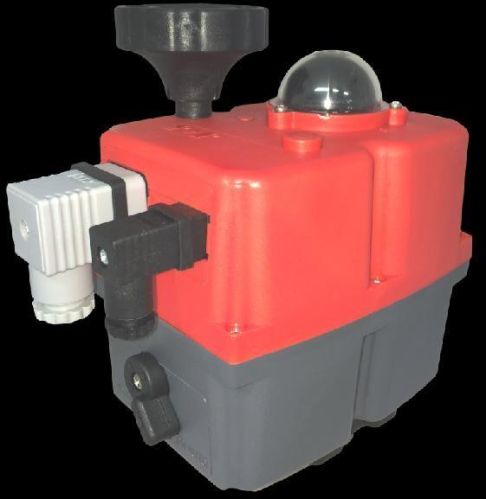

RC35 Basic On-Off JJ Electric Actuator

Basic On-Off Electric Actuator Model RC-35 12V :

• Overview - Maximum 38Nm basic on-off reversible IP67 12VDC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses. F03, F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Stays put on external power failure. Designed to have power on at all time
• Sizing Criteria - Max break torque 38Nm.  Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options - Heater 9 or 11mm female star drive output

Basic On-Off Electric Actuator Model RC-35 110V :

• Overview - Maximum 38Nm basic on-off reversible IP67 110VAC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
• Sizing Criteria - Max break torque 38Nm.  Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options - Heater. F07 x 17mm female star drive output kit.

Basic On-Off Electric Actuator Model RC-35 240V :

• Overview - Maximum 38Nm basic on-off reversible IP67 240VAC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
• Sizing Criteria - Max break torque 38Nm.  Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options - Heater. F07 x 17mm female star drive output kit.

Basic On-Off Electric Actuator Model RC-35 24V :

• Overview - Maximum 38Nm basic on-off reversible IP67 24V electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
• Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
• Sizing Criteria - Max break torque 38Nm.  Max run and reseat torque 35Nm. Max ambient temp range -20 to +70C.
• Options - Heater. F07 x 17mm female star drive output kit.
