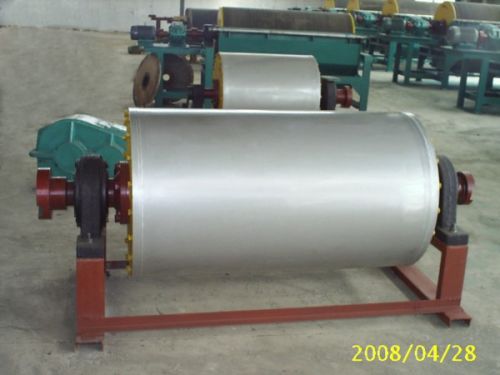

RCY-G Magnetic Pulley

Model Drum Length Drum Diameter Shaft Head
Ф x K Shaft key Bearing Block Bearing Model Overall
Length
L1 Magnetic Intensity
(mT) Drum Weight
(Kg)
b h A E H d
RCY-G50 600 500 55x115 16 60 850 240 80 27 1312 1091 P=150-250 T=300-400 380
RCY-G65-1 750 500 70x135 20 76 1000 350 120 27 1316 1280 580
RCY-G65-2 630 800
RCY-G80-1 950 500 70x135 20 76 1300 350 120 27 1316 1580 765
RCY-G80-2 630 90x175 24 97 380 140 3520 1661 1090
RCY-G80-2 800 1480
RCY-G100-1 1150 630 90x175 24 97 1500 380 140 27 3520 1861 1285
RCY-G100-2 800 110x215 32 119 440 160 34 3524 1945 1865
RCY-G100-3 1000 130x255 36 140 480 180 3528 2020 2795
RCY-G120-1 1400 630 110x215 32 119 1750 440 160 34 3524 2195 1610
RCY-G120-2 800 2465
RCY-G120-3 1000 130x255 36 140 480 180 3528 2270 3560
RCY-G120-4 1250 150x25 40 161 540 200 3532 2305 5230
RCY-G140-1 1600 800 110x215 32 119 2000 440 160 34 3524 2445 2865
RCY-G140-2 1000 150x275 40 161 540 200 3523 2555 4405
RCY-G140-3 1250 6005
RCY-G140-4 1400 170x335 181 590 220 40 3536 2635 7535
Note: Magnetic Circuit indudes full magnetic and semi magnetic
