RCYC- Crossblet Magnetic Separator

Model Apply with
belt width
(mm) Apply with belt speed
(m/s) Rated
Height
(mm) Rated height magnetic induction(mT) Iron absorption capacity
(kg) Working Motor Power
(kw) Major Size(mm) Weight
(kg)

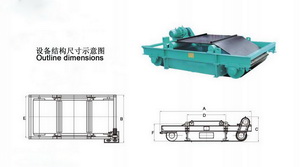

A B C D E F
RCY-C50 500 ≤4.5 150 ≥70 0.1-35 Continuous 1.5 1970 903 722 620 647 451 680
RCY-C65 650 ≤4.5 200 ≥70 0.1-35 Continuous 1.5 2110 1053 722 770 797 451 830
RCY-C80 800 ≤4.5 250 ≥70 0.1-35 Continuous 2.2 2320 1253 722 970 987 451 1100
RCY-C100 1000 ≤4.5 300 ≥70 0.1-35 Continuous 3.0 2690 1453 803 1120 1190 451 1710
RCY-C120 1200 ≤4.5 350 ≥70 0.1-35 Continuous 4.0 2890 1712 868 1320 1430 516 2292
RCY-C140 1400 ≤4.5 400 ≥70 0.1-35 Continuous 4.0 3090 1913 868 1520 1630 516 3100
RCY-C160 1600 ≤4.5 450 ≥70 0.1-35 Continuous 5.5 3310 2143 955 1760 1852 590 4150
RCY-C180 1800 ≤4.5 500 ≥72 0.1-35 Continuous 7.5 3540 2420 1050 2045 2130 590 5800
RCY-C200 2000 ≤4.5 550 ≥72 0.1-35 Continuous 7.5 4510 2670 1050 2350 2400 780 6550
