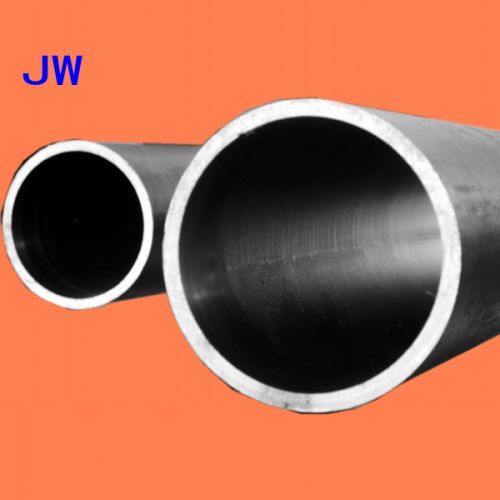

Contact SupplierWe offer ready to hone tube (skiving tube)
grade�st 52
metric size�
inside diameter from 40 to 250mm
max length 14m.
Straightness: 0.5 /1000
tolerance int: iso h9
tubes are provided according to the norm en10305-1, din 2391
type�cold drawing
bore ovality
the bore ovality is comprised in the 50 % of the inside diameter tolerances.
Marking: jw, id, od
length: unfixed length or fixed length
package: banding with steel strips, braiding parcel at outside
conservation: anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends.
Impact test: -20�, 27 j (only for special requirement)
