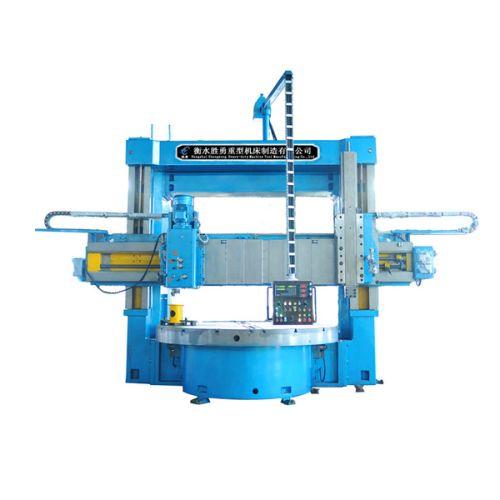

Reasonable Price Boring Mills & VTLs For Sale

Reasonable Boring Mills & VTL machine is designed by FEA (Finite Element Analysis) especially for high-efficiency, high-rigidity and heavy-duty cutting. it  can do the high-speed cutting of the internal and external cylindrical surface, internal and external conical surface, arc, screw and rotary surface.
1 Workbench has the features of high running accuracy, large carrying capacity and small thermal deformation.
2 Table spindle is centered by high-precision double-row short roller bearing whose radial clearance can be adjusted.
3 All the casting adopt high quality resin sand casting process after aging treatment. The steel materials has been quenched and conducted with hardening treatment.
Vertical Turning Lathes VTL machine model:
C5112C5116C5118C5120C5123C5125C5126
Maximum turning diameter:1250 1600 1800 2000 2300 2500mm
Maximum height of workpiece: 100010001000120013001350 mm
Maximum weight of workpiece 3.2 5 5 6 8 10 t













Technical specification of Vertical lathe VTL machines C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 16002000220025003000 mm
3 Maximum Weight of workpiece 1020 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 rmin
6 Maximum torque
