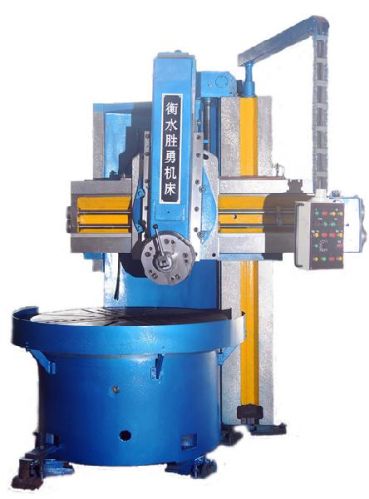

Reasonable Price Heavy CNC Vertical Lathe Machinery

Single column CNC vertical lathe machinery is designed to be widely used in the motor, aviation, mining machinery, hydraulic turbine, general machinery and metallurgy industry. CNC Vertical lathe machinery can be utilized in rough and fine machining internal and external cylindrical surface, conical surface, face, cutting.
Features of CNC Vertical lathe machinery:
Main parts, such as left column and right column of gantry frame, beam and ram, adopt optimized CAD design, according to the stiffness of the GB standard,use section size and symmetry shape, so that vertical lathe machinery has a static and dynamic stiffness, small thermal deformation.
Beam: Combination large cross-section design and pre deformation process to enhance the bending and torsional rigidity of the beam.






























Technical specification of Heavy cnc vertical lathe machinery CK5125
1 Table diameter 2300 mm
2 Maximum turning diameter 2500 mm
3 Maximum height of workpiece 1350 mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 rmin
