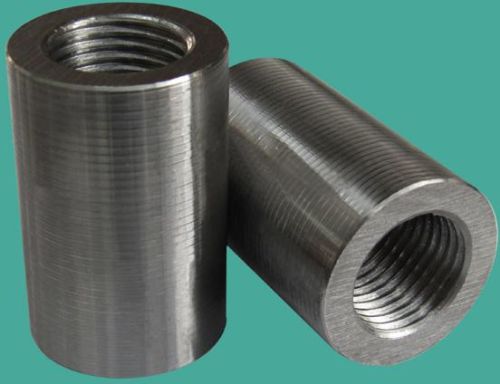

Rebar Coupler (Parallel Thread)

Product Specification
coupler Size
d14; D16; D18; D20; D22; D25; D28; D32; D36; D40.
(d14 Means It is Fit for Splicing Rebar of Which Diameter is 14mm, and So On.)
inner Dia(+0.25mm)
12.55;14.50;16.35;18.45;20.35; 23.15; 25.95; 30.15; 33.85; 37.55.
outer Diameter(â±0.2mm)
21; 24; 27; 29; 31.9; 37; 41; 47; 53; 59.
length(+2mm): 38; 43; 48; 53; 58; 63; 68; 80; 83; 88.
thread Pitch: 2.5p(d14-d22); 3.0 P(d25-d32); 3.5 P(d36-d40).
thread Angle: 75â°
gw(kg)/pcs
0.068; 0.099; 0.125; 0.180; 0.205; 0.317; 0.399; 0.640; 0.900; 1.099.
quantity of per Carton(pcs)
294; 252; 210; 170; 144; 104; 42; 30; 25; 20.
packing
in Carton(29.5cm*28cm*8.5cm) and Wooden Pallet(89cm*90.5cm*11cm).
features & Advantages
1. Material: #45 High Quality Carbon Structural Steel Tube.
2. Tensile Strength Can Reach 110% of Parent Rebar.
3. Install Quickly, Conveniently, Shorten Construction Period, Cost Effective.
4. Custom Coupler is Available as per Your Requirements.
type & Application
1.standard Type Coupler is Designed to Splice Rebars with Same Diameter.
2.left-handed&right-handed Coupler is Designed to Splice Rebars for Both Ends Cann�t Roated.
3.transition Coupler is Designed to Splice Rebars with Different Diameters.
4.nut Locking Type Coupler is Designed to Splice Rebars for Both Ends Completely Cann�t Roated, Rebar Splicing Achieves Through Turning Coupler, and the Lock Nut is Used to Lock Coupler Tightly.
approval and Certification
1.passed By Ce.
2.passed By Iso 9001.
3.tested Successfully By National Center for Quality Supervision and Test of Building Engineering in China.
