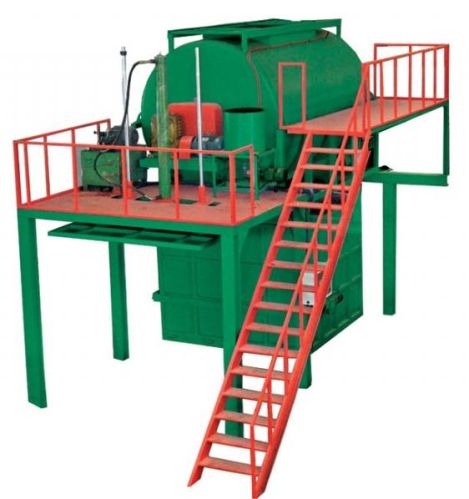

Contact SupplierThe machine is mainly used to crushing foam has been mixed with glue, then through the mould, pressed by the hydraulic system, the corresponding density of the regeneration of sponges required. The machine has a stirring, mixing, compression molding a set of assembly line and production efficiency. Chooses to use the automatic steam moulding, the production efficiency 6-8 times .
technical specification
Model ERS-R01/ERS-R02/ERS-R03
mixing box cubage: 10m³/ 10m³/ 12m³
mixing speed: 40r/min 40r/min 40r/min
total power: 15kw/ 18kw/ 22kw
moulding size:
L2050*W1550*H1000mm(2pcs)manual/L2050*W1550*H1850mm(1pc)automatic/ L2050*W1550*H1850mm(1pc)automatic
machine external size: L6000*W3600*H5300mm/ L6000*W3600*H5500mm/ L6000*W3600*H5800mm
