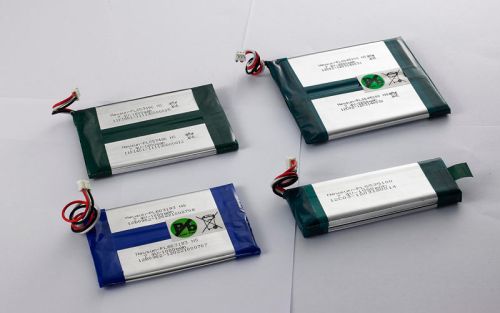

Contact SupplierWe are offering rechargeable lithium polymer battery.
1,iso 9001/14001, ul, ce, un38.3, sgs, rohs,
2,21 years excellence
3,oem and odm are welcomed
4,own industrial park
data sheet for pl381430:
item
rating
note
1 capacity
typical
125mah
discharge:0.2cma (24ma)
cut off voltage:3.0v for cell
minimum
120mah
2 nominal voltage
average 3.7v
discharge:0.2cma (24ma)
cut off voltage:3.0v for cell
3 ac impedance resistance
≤310mω
4 discharge cut-off voltage
3.0v
5 charge current
0.2c ma
standard charge
6 charge voltage
4.2v
7 max. Charge voltage
4.23v
8 charge time
approx 2.0h
charge: 1.0cma(120ma )
9 max. Charge current
0.2c ma
1.0cma
10 max. Discharge current
2.0c ma
2.0cma
11 weight
approx 5.5g
12 operating
temperature
charge
0~+45
discharge
-10~+60
13 storage
temperature
less than 1 month
-10~+45
recommended storage
temperature: 25,at the
shipment state.
