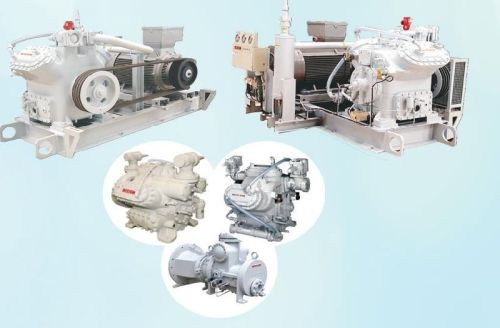

Reciprocating Compressor

INDUS line of RefPAKS are complete refrigeration systems on a compact structural steel base frame.

The RefPAK will consists the following components mounted, interconnected, electrically wired and pressure tested at factory.

Screw (or) Reciprocating compressor RefPack comes complete with:

* Imported MYCOM Screw (Or) Reciporocating compressor
* Three stage oil separator.
* Thermosypen oil cooler
* Motor
* LP Receiver
* Refrigeration Pumps
* Oil Collecting Vessel
* HP Receiver
* Economizer (If necessary )
* PLC / Electrical Control Panel

RefPack uses MYCOM (Japan) make ammonia screw or Reciprocating compressors in our manufacture.

This ensures the heart of the package has high reliability and sturdiness.

A self aligning feature has been introduced, using flange and foot mounting motor.

The MYCOM Screw (Or) Reciporocating compressor can be mounted on the motor flange by 6/8 bolts resulting in perfect alignment.

FEATURES

* Fast efficient and less expensive installation – onsite work will consist of connecting Refrigeration Pak to freezer, bringing power into control panel and Installation of cooling tower with interconnecting water piping.

* Compact design means that the refrigeration system will use a minimum of space.

* Better quality end product – since most of the fitting and welding is done in a shop environment versus out in the field coupled with INDUS rigid quality control
program, the refrigeration system will be of the highest quality.

* RefPAKS can be shipped in a standard 20’ / 40’open top container.

* MYCOM Japan made compressors offer the latest in efficiency and technology Technology. The flange mounted motors eliminate the need for initial and Periodic motor alignment. Compressor capacity reduction from 100% to 10%

* Shell and tube economizer for added performance and efficiency.

* The PLC control Panel using OMRON JAPAN Make PLC is the most technologically advanced screw compressor control center. The control center is easily integrated into the plant monitoring system.

* The Pump receiver sized large enough to hold the ammonia charge of the whole system along with the use of a pilot receiver does away with the need for a high-pressure receiver at the same time lowering the operating charge of ammonia.

* A standby ammonia pump insures production in the event of a pump failure.

* Indus RefPAKS come with the condenser, water pump, and associated strainer and valves. Customer supplies the cooling tower per the heat of rejection and water conditions specified.
