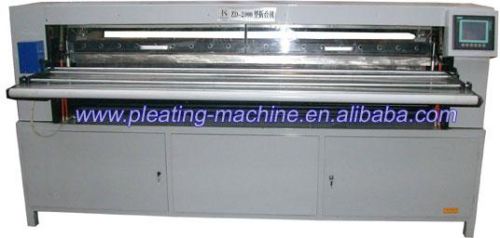

Reciprocating Knife Pleating Machine, Brand Name : kc

We offer Reciprocating Knife Pleating Machine.
Reciprocating can fold multilayer filter paper, paper, non-woven cloth, blankets, metal, non metal net.
Main technical parameters:
Maximum pleating width: 2000mm
pleating layers: 1 - 3
Pleating high: 8mm - 55mm
Pleating thickness: 0.5MM - 4MM
discount rate 15 - 110 fold min
speed regulating motor: 1.1KW
Preheating power: 6KW
temperature range: room temperature to 200 degrees
pressure: 0.6MPa
The machine size: 2500mm x 1400mm x 1450mm
Applicable materials: multilayer filter paper, paper, non-woven cloth, blankets, non metal net. For the filter is folded, counting, preheating and forming processing, pleating height range 8-50 mm (associated with pleating width).
Standard configuration of the machine: BZD-1100 type filter pleating machine adopts PLC control, man-machine interface control, with automatic temperature control system, frequency conversion speed regulation, automatic counting, automatic regulation of RBI counterforce, preheating setting function, can be folded filter paper, non-woven fabric, common PP filter material, pleating metal mesh to replace the metal net special pleating knife. Rack enclosure part spray, filter through the plates are made of stainless steel
