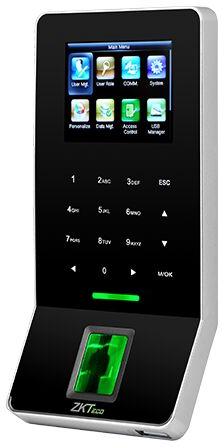

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high image quality infrared detection fingerprint sensor.

• Display

  2.4-inch TFT LCD Color Screen

• Fingerprint Capacity

  3,000

• Card Capacity

  5000(Optional) ID or IC Card

• Transaction Capacity

  30,000

• Sensor

  BioID Sensor /BioID+ (optional)

• Algorithm Version

  ZKFinger V10.0

• Communication

  RS232/485, TCP/IP, USB-host, Wi-Fi

• Access Control Interface

  3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

• Wiegand Signal

  Input, Output

• Aux. Input

  1ea for linkage function

• Functions

  DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)

• Power Supply

  12V DC, 3A

• Operating Temperature

  0 °C - 45 °C

• Operating Humidity

  20% - 80%

• Dimension

  158.5 x 78.0 x 19.4mm (LxWxH)

• SDK and Software

  PUSH AC SDK, ZKBio Access software
