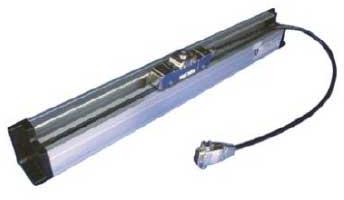

Magnetic Linear Encoder (MLS-4), Feature : Durable, Stable Performance

We offer Magnetic Linear Encoder (MLS-4), which is suited for press brake and bending machine requirements. Offering high durability and superior efficiency along with capability to resist industrial contamination, dust and vibration, the Magnetic Linear Encoder (MLS-4) the Magnetic Linear Encoder (MLS-4) has a longer functional life.
Specialty

• Incremental Encoder output A, B,Z,/A./B,/Z
• RS422 differential quadrature output
• Excellent stability of the signals
• Pre assembled unit, easy to connect
• Contact-less system
• Measuring length of up to 2040 mm
• Robust shielded metal enclosure
• Fully Sealed, Protection class IP67
• Resistant to dirt, humidity and dust
• Withstands shock and vibration due to special support
• Specially designed mounting points to minimize errors
• Single reference marker
• Magnetic system with no optics to fail or become contaminated
• Self adjustment of the clearance between the guide and the carriage
• Compressed air inlet at the scale end blocks
• Shielded and armoured power cable with a stainless steel braid
• Double protection along the sliding side (four lip seals)
