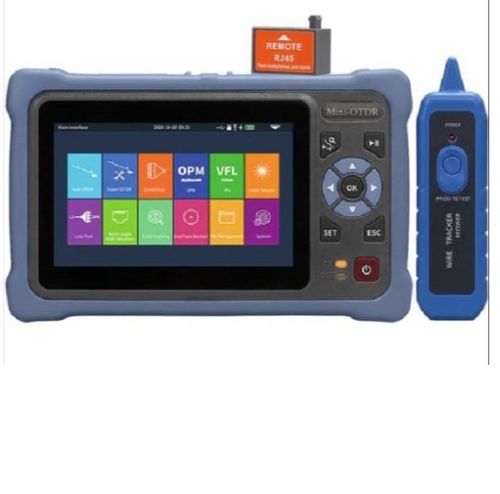

Optical Time Domain Reflectometer, Style : Modern

Mini-Pro OTDR 1310/1550nm 26/24dB 4.3 inches Touch Screen Test Rang 5m-100Km Optical Network Tester Built in OPM/OLS / RJ45 / VFL UPC Connector

• Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~100km,Dynamic Range 26dB/24dB.Test Unit km, kft, mi ; Connector FC/UPC.
• Built-in OPM Calibration wavelength (850/980/1300/1310/1490/1550/1625/1650nm); Built-in OLS 1310/1550nm;Bulit-in VFL 10Mw
• Built-in Other fuctions: RJ45 Sequence test ;RJ45 Cable Tracker (with detector); RJ45 Line length test ; Distance Meter;Flashlight
• 4.3 inches 800x480 IPS TFT-LCD,Multi touch capacitive touch screen

TOUCH SCREEN OTDR MODEL TT800U
Product Attributes

1 Main Functions:

Test fiber length

The distance between any two points on the test fiber curve

Intelligent battery charge indicator

2 Product Characteristics

Pocket type, light weight, easy to carry, strong and durable

Color LCD display

Data can be transmitted through the PC line USB

Intelligent battery charge indicator and battery low voltage automatic shutdown function

Windows interface, Chinese and English operation interface

3 technical indicator

Central wavelength: 1310nm/1550nm + 20nm

Applicable fiber type: single mode

Interface type: FC/PC

Measurement range: 0~60KM

LCD display: 480 x 5.7, 640 inch color LCD

Interface: USB

Output interface: FC/UPC (standard, optional universal joint)

Power supply: AC/DC adapter: voltage range: 100V ~ 240V (1.5A), frequency range: 50/60Hz

DC: 15V ~ 20V (2A)

Internal lithium battery:

7.4V, 4400mAh, battery working time: 10 hours (room temperature) 3

Interface language: Simplified Chinese / English key switch

Environmental adaptability

Working temperature: 0 C ~ 40 (battery charge: 5 to 40)

Storage temperature: - 40 to 70 DEG C (batteries not included)

Relative humidity: 5??%, no condensation

Appearance size: 210mm x 100mm x 60mm

Weight: About 1kg
