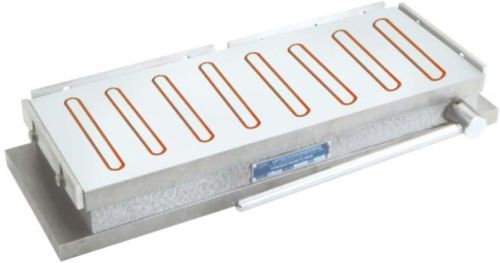

Rectangular Permanent Magnetic Chuck UL-709 Series, for Industrial Use, Voltage : 110V, 220V

Listing ID #1318566

17,000 / Piece

Get Latest Price

MOQ As per requirement
Power1-2kw, 2-3kw
Power SourceElectric
Warranty1year
SurfaceGalvanized
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Power 1-2kw, 2-3kw
Power Source Electric
Warranty 1year
Surface Galvanized
Type Permanent Magnetic Chucks
Shape Rectangular
Application Industrial Use
Voltage 110V, 220V

We are engaged in providing high-quality Permanent Magnetic Chuck UL-709 Series to the clients of national and international origin. The chuck is a cost-efficient holding device for several machines. The device has high magnetic power and goes through several quality levels before reaching the clients. The permanent magnetic chuck is provided to you at discounted rates.
Features

Holding device for surface grinding machine, Tool & cutter grinder, Spark erosion machines & also for light milling.
The working face & bottom face are perfectly parallel.
Assembled with powerful Magnets.
Poles individually magnetized for full loading power.
Magnetic pull is 40-70% more than IS specification.
Bottom plate has suitable extension to clamp on table.
Better magnetic grip due to close poles.
Suitable to hold thin & small jobs.
Easy operated on -off lever.

Specifications

Sr.No.	Cat No.	Size	Ploe Gap (mm)	PolePitch (mm)
1.	UL-70901	250 L x 150 W x 65 H	14	30
2.	UL-70902	300 L x 150 W x 65 H	14	30
3.	UL-70903	300 L x 200 W x 65 H	14	30
4.	UL-70904	350 L x 150 W x 65 H	14	30
5.	UL-70905	400 L x 150 W x 65 H	14	30
6.	UL-70906	450 L x 150 W x 70 H	14	30
7.	UL-70907	450 L x 200 W x 70 H	14	30
8.	UL-70908	500 L x 200 W x 70 H	14	30
9.	UL-70909	600 L x 200 W x 70 H	14	30
10.	UL-70909	450 L x 250 W x 70 H	14	30
11.	UL-70910	450 L x 300 W x 70 H	14	30
12.	UL-70911	600 L x 250 W x 70 H	14	30
13.	UL-70911	600 L x300 W x 70 H	14	30
14.	UL-70912	750 L x 250 W x 70 H	14	30
