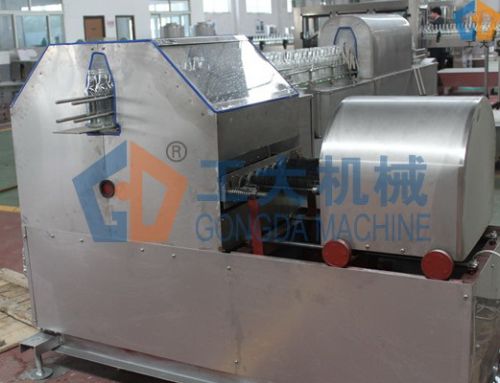

Recycle Glass Bottle Washing Machine

Recycle glass bottle washing machine
1. Principal features
the machine contains the inner layer washing machine, the outside remove labeling machine, and the soaking machine etc. And we could dispose soaking groove and electric control system, with the characters of high efficiency of washing bottle, low bottle broken, rate, saving water and electricity.
2. Principal parameter
bottle specification:
bottle outside diameter: 56-64mm
bottle height: 140-220mm
produciton capability: 3000-4000 bh
lnner layer washing machine
main motor power: 1.1kw
inside washing motor: 0.55kw
inside washing motor: 505rmin
pressure of water supplying: 0.3-0.4mpa
bottle feeding speed: 7.24mmin
driver plate speed: 7.28rmin
outer size: 1750×1320×1320mm
weight: 1100kg
outside remove labeling machine
orbit motor: 0.75kw
orbit speed: 11.13rmin
outside washing motor: 0.75kw
water pump motor: 0.37kw
water consumption: 2.8m3h
outer size: 2900*800*1350mm
weight: 600kg
steeper
liquid temperature: 45-65oc
solution concentration: 1.4%
outer size: 2400*2650*2400mm
weight: 450kg.
