Recycled Paper Pulp Egg Tray Machine

We are offering high capacity recycled paper pulp egg tray machine.
The equipment is a eight-sided and rotary molding machine, it is suitable for the customers who have the mass production of 70000 pieces per day, such as egg tray, fruit tray and bottle tray.
Main equipment:
1. Pulping system
pulper:2m³,7.5kw stirrer:1.5kw*2 pulp pump:7.5kw sewage pump:1.5kw fiberizer: 7.5kw

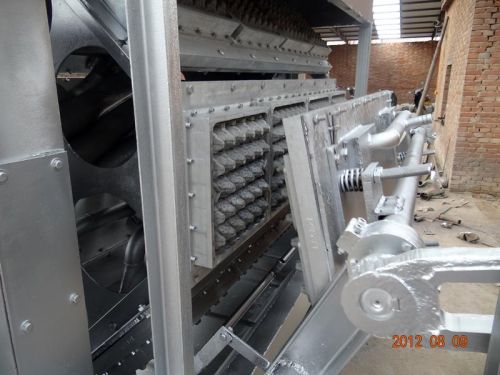

2. Molding system
molding equipment total has eight molding templates, one transfer template, every molding template can be loaded four thirty-egg tray mold, total thirty-two sets. Molding efficiency is 13-15 cyclemin, with vacuum automatic drainage system, mold cleaning equipment and automatic heating system
3. Drying system: traditional drying room
overall dimension: 40*3.1*1.3m, one layer conveyor, separated three heating sections, every section has single fan, it can control independently.
Construction materials: standard red brick 25000 pieces; concrete plate 0.5*2m, 180 pieces; cement 5-10 t; firebrick, 1000 pieces.
Main energy: domestic, coaldry sticks; abroad, lpggascoaldiesel, it can be choose naturally drying in little rain area.
4. Sack and bale system after drying
automatic counting after drying, height limit pressor, easy to stock and transport.
5. Auxiliary equipment
vacuum pump: 26kw, one set; air compressor: 7.5kw, one set; air storage tank
production line
1. Capacity: 3000 pieceshour (for thirty cell tray, it can come up to 4000 pieceshour according to customer’s request.)
2.production line length ≥55m，width≥15m, workshop: length≥10m, width≥8m, height≥3.5m, the finished products room must be greater or equal to 150m²
3. Production line total power: 60-110kw (according to the equipment of customer choice)
4. Production line worker total 5-7 persons.
5. This production line is configured by 30-eggs tray as
