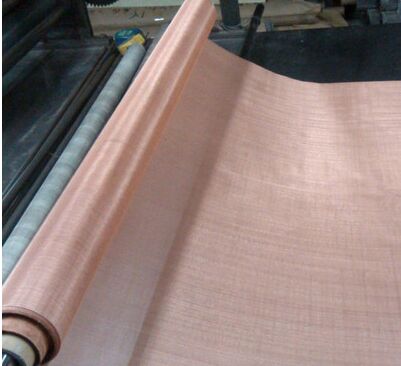

Red Copper Wire Mesh for electic conducting

1.Material:

Brass wire mesh:Brass wire.(Brass 65%,zinc35%,Brass 80%,zinc20%).

Copper wire mesh: Red copper wire.(Pure copper 99.5%).

Phosphor bronze wire mesh: Phosphor bronze wire(Cu85%-95%).

2.Wire Diameter:  0.0406-2.03mm.

3.Mesh count:

Red copper mesh:1-250 mesh.

Brass wire mesh:1-250 mesh.

Phosphor bronze wire mesh:1-350 mesh.

4.Aperture:  0.0610-23.37mm.

5.Weave pattern:   Plain Weave, Twill Weave.

6.Features:

Non magnetic, wear-resistant, filtration of electron beam. In general, some secret area and room will be made of red copper mesh made of shielding chamber or directly to the copper network with cement touch in the wall to play the shielding effect.

7.Application:

• used as the shielding screen in the cable circuits, laboratories and computer rooms.

• widely used in the power sector, aerospace, information industry and military for RFI and EMI shielding.

• used as the faraday cage.

• installed onto buildings to insulate noise.

• made to filter discs for liquid, gas and solid filtering
