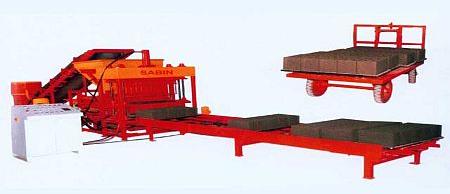

Fully Automatic Hydraulic Hollow Block Machine

Fully Automatic Hydraulic Hollow Block Machine is used to produce different stones, curbstones and hollow blocks by using different molds on the machine. We offer premium Fully Automatic Hydraulic Hollow Block Machines that are made out of the finest raw materials available in the market. Our Fully Automatic Hydraulic Hollow Block Machines ensure optimum production and drastically reduce dependency on human labor that in turn minimizes labor expenses leading to high quality production and profit. We are one of the leading Fully Automatic Hydraulic Hollow Block Machine Suppliers in India.

Model : S 10

Cylinders

• Ramming 3 No's
• Box 3 No's
• Feeder 1 No. Wooden Pallet Conveyor 1 No Total 8 No's
• Auto Pallet function for Hydraulic
• Filling Ejection Automatic Hydraulic

Productions

• 2 stroke per minute
• 8" block - 5 blocks / stroke 600 block / hour, 4800 blocks / 8hr shift
• 6" block - 6 blocks / stroke 720 block / hour, 5760 blocks / 8hr shift
• 4" block - 10 blocks / stroke 1200 block / hour, 10000 blocks / 8hr shift
• Tank capacity of Hydraulic oil - 200 ltrs
• Feeder Box 1 no.
• Electrical PLC Control Panel
• Total Weight : 4250 Kgs
• Operating Pressure 220 Bar (50 ton)
• Mixing Rough Material : From Mixer Machine to conveyor to Storage Box - storage box to feeder and then to auto ram and box
