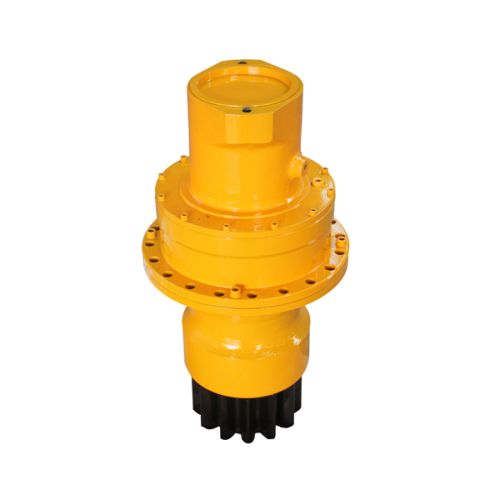

Reducer

There are many other models can be provided. If you were interested, please contact with us.
The technical datas of zfb26b reducer are listed in below:
1. Max output torque (t2mx nm):
excavator:10000
crane:16500
2. Ratio: 31.36,37.8,43.9,51.52,55.2,63
3. Hydaulic motor: linde,rexroth and other kinds of domestic and overseas motor are suitable.desing the connection interface between motor and planetary drive according to customer's requirements.
4. Planetary gearbox weightapprox.kg: 225
(without hydraulic oil and motor)
5. Output gear:module of output gear 8,10,12,14mm,
modification coefficient:x=0.5
note:
1. Gearbox output direction is same as the in put direction.
2. For more ratios, please contact our technical department.
3. For easily install and adjust the backlash of gear of slewing bearing, the bearing seat of planetary gearbox can be made with eccentricity 2.5mm
4. If you require special drive solution which is out of the scope of our current products, please let us know. We will provide you with a modified design to better meet your requirements
