Reel Stretch Wrapping Machine

We are offering reel stretch wrapping machine.
y2000f reel stretch wrapper
machine introduction(fssjn at hotmail dot com)

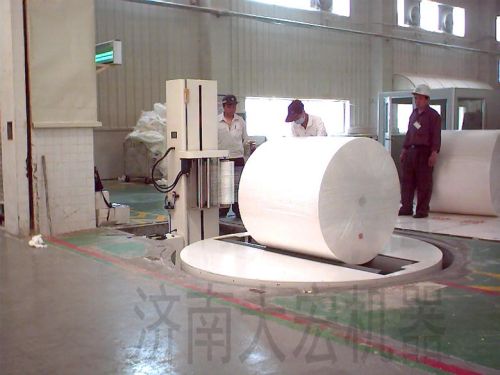

y series reel wrapper is a machine designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels. It is ideal for reel axial wrapping—across the cylindric diameter then along the longitudinal axis . This packing method can form a cocoon type packing. It is completely moisture water & dust proof packing and protects the products.
controls
omron plc control system, hmi (human machine interfaces) easy to operate
wrap times can be preset
film tension control adjustment on the panel
cycle pause capability
0—12rpm variable turntable speed by frequency changer
variable roller speed by frequency changer
safety push-pull emergency stop button
turntable
2000mm diameter structural steel plate
460mm height turntable
position turntable alignment
soft start /stop
heavy duty chain drive
film carriage
powered pre-stretch system up to 250% to min film consumption(prestretch ratio can be specially made according your requirements.)
film delivery variable speed by separate dc drive motor
film dancer-bar with variable speed output
specifications
wrapping size
roll diameter(mm) 600-1500
roll width(mm) 700-1600
roll weight(max) 2000 kg
packing efficency 20-30rolls /hour
machine
dia . Of turntable 2000mm
turntable speed 0-15rpm
turntable height 460,530
power supply 2.0kw/ ac380v
machine weight 1080 kg
dia . Of roller 150mm
roller center distance 420mm
machine dimension(mm) 2000mm(l)*2896mm( w)*2270mm(h)
air consume 1000ml/min
