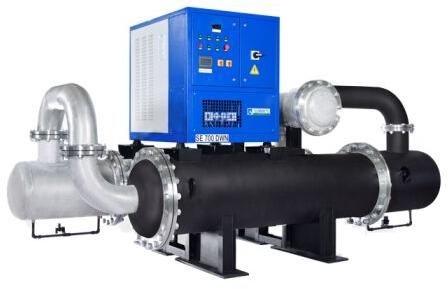

Refrigerated Air Dryers, Usage : Removing Water Vapors From Compressed Air

Air contains contaminants like solid (dust particles), liquid (moisture) and oil which contaminates the compressed air. When this contaminated compressed air is used for various applications, it may cause failures of pneumatic valves, expensive instruments, etc which results in the downtime of whole system.

Summits Refrigerated Air Dryers remove the moisture to a level of 600 ppm(w) by using energy efficient refrigeration system and effective heat exchangers. The wet air enters into the economizer (pre cooler) of the refrigerated air dryer and the temperature gets reduced significantly by the outgoing cold air. This medium temperature air further enters in to the evaporator of the refrigerated air dryer and the temperature drops to 2^oC by the cold refrigerant. At this temperature the moisture in the vapour form condenses into liquid and the same is separated by high efficient integral moisture separator and automatic drain trap. All the three components (i.e. pre cooler, evaporator and moisture separator) are integrated into one single unit.

Salient Features

• Eco friendly refrigerant in all range of refrigeration air dryers
• Digital scroll / VFD technologies in selected models of refrigeration
  air dryers (Read more...)
• Latest technology energy efficient heat exchangers in all models of
  refrigeration air dryers
• Very low pressure drop is a significant advantage in Summits
  refrigeration air dryers
• Refrigeration Air Dryers occupy less floor space
• Remote interfacing and monitoring in selected models of
  refrigeration air dryers
• Refrigeration Air Dryers provide outlet air quality according to
  ISO 8573-1,Table 3,Class 4
