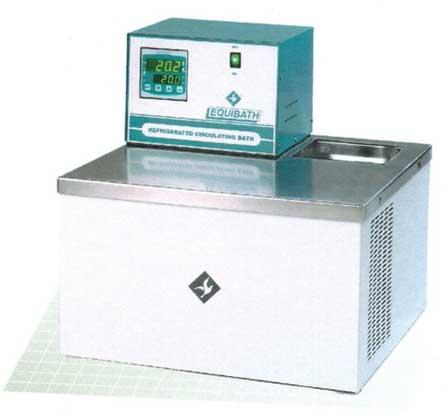

Refrigerated Circulating Bath

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We bring forth the best quality Refrigerated Circulating Bath which are high on demand in the market. Applications Ideal for Rotational Viscosity tests, Spectrophotometers, Refract meters,....

View More Details

Send Enquiry

Product Details

We bring forth the best quality Refrigerated Circulating Bath which are high on demand in the market. Applications

Ideal for Rotational Viscosity tests, Spectrophotometers, Refract meters, Electrophoresis, Is electric Focusing, Calibration, Chromatography, Condensers, Densitometers, Polari meters and General Laboratory Cooling

Equibath Advantages

EQU/BATH provides heating & cooling
Extremely compact single unit- saves bench /floor space
Eliminates all the unwieldiness and hassles of using a separate Bath & Chiller
Built in circulator pumps to external devices
It offers highest level of performance, flexibility and control for the most demanding applications
Quiet operation
Wide operating range

Construction

Crevice free stainless steel die pressed vessel
Stainless Steel polished top

Standard Features

Temperature Range -10 to +120^oC
PID Temperature Controller with Soak Timer
Control accuracy Of : O.1^oC for water 8. : 0.2C for oil
High Temperature safety cut-out - self resetting type
Excellent stirring enables uniformity better than 0.3^oC
Resolution 0.1^oC
Two bright LED displays for process temperature and set temperature / time
Powerful external pumping @ 9.0 Lit/min

Specifications

Model	Bath	Temp. Range	Capacity	Bath Opening in mm	External size L/W/D in mm	App. shipping details Net/Gr.// Volume
#8506	EQU/BATH-6Ltr.	-10 to + 120^oC	6 lit	145 x 150	460 x 410 x 410	30kg / 32kg / 0.1m²
#8520	EQU/BATH-20Ltr.	-10 to + 120^oC	20 lit	300 x 300	420 x 610 x 800	50kg / 75kg / 0.25m²
