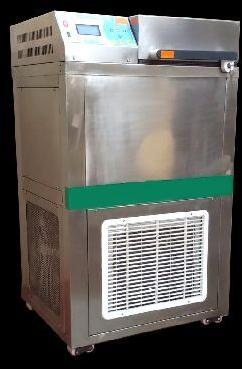

Refrigerated Circulating Bath (Chiller) (PLT-115 A)

APPLICATIONS OF WATER BATH CHILLER

Double Walled Serological water bath is a versatile equipment to handle any clinical procedure, Incubation, Inactivation, Agglutination & Biomedical procedures.
Double Walled Serological Water Bath is low cost options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical, Milk or Industrial Applications.

SALIENT FEATURES & CONSTRUCTION OF WATER BATH CHILLER

Double walled construction.
Inner Tank and lid made of Stainless Steel (SS-304 grade).
Outer chamber is made of Mild Steel duly powder coated.
Flat Stainless Steel Lid prevents Evaporation.
Heating by immersion heaters.
Temperature Ambient range up to 90^oC.
Controls temperature within an accuracy of ±1^oC.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
Fitted with drain plug for easy cleaning.
To work on 220/230V AC supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF WATER BATH CHILLER

Model No.	WBS-1	WBS-2	WBS-3	WBS-4
Internal Dimensions (LX W X D)	300 x 250 x175 mm	325 x 300 x175mm	450 x 300 x 175 mm	600 x 300 x 175 mm
No of Racks	2	4	6	8
Approx. Capacity	13 Ltr.	17 Ltr.	23 Ltr.	31 Ltr.
Heating Load	1.0 KW	1.5 KW	2.0 KW	2.0 KW
Top Lid	Stainless Steel
Temperature	Controlled with hydraulic type Capillary Thermostat
Temperature Range	From ambient to 90^°C
Temperature Accuracy	± 1^°C.
Temperature Display	L-shaped prismatic thermometer. (not supplied with the unit)
Heater Protection	By Stainless Steel Perforated cover

OPTIONAL FEATURES OF WATER BATH CHILLER

ELECTRONIC DIGITAL CONTROLLER	Temperature controlled by Micro processor based temp. indicator cum controller .
STIRRING ARRANGEMENT	By F.H.P. stirrer fitted with stainless steel shaft.
STIRRING SPEED	Can be regulated by speed regulator.
