REFURBISHED SEAL

Get Latest Price

Pressure10 bar (max)
Temperature-20...140OC
Metal PartsSS304, SS316, Hastelloy-C, Alloy 20
Velocity20 m/sec
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Access engineering

Oshiwara, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Pressure10 bar (max)
Temperature-20...140OC
Metal PartsSS304, SS316, Hastelloy-C, Alloy 20
Shaft Diameter18...100mm
Velocity20 m/sec
Seal FacesCarbon, SiC, Tung. Carbide
BellowsElastomers(005), Elastomers(006)

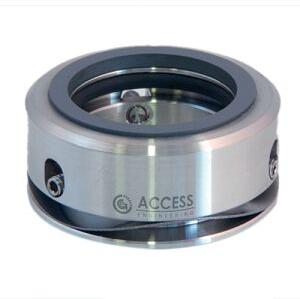

Series AES-023 are Wave spring, pusher type unbalanced seals used for universal applications. The seals are compact in design suiting all types of rotating equipments, pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. A snap ring holds all components together, helping in easy installation. The parts are interchangeable, AES-023 can be converted to AES-023 by just changing the seal ring and the secondary member.

SEAL CHARACTERISTICS

• Single Seal
• Unbalanced
• Independent on direction of rotation

APPLICATIONS

• General Chemicals
• Petrochemicals
• Refineries
• Light Hydrocarbons
